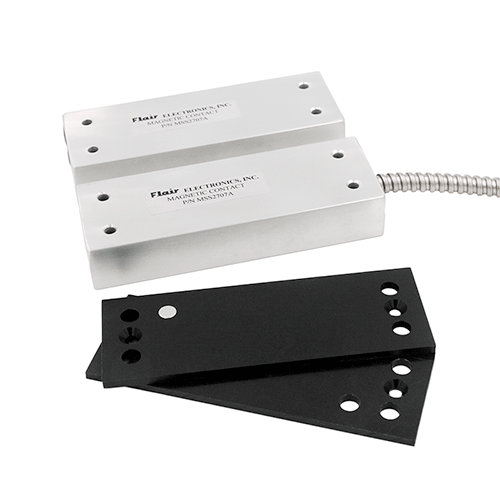

High Security Surface Mount Magnetic Contact (SPDT)

The Model MSS2707A High Security Surface Mount Magnetic Contact is an SPDT switch with Triple Bias reeds. Trying to defeat the switch with an external magnet will result in changing the state of one or more of these three reeds and trigger an alarm. This magnetic contact also comes with a pry tamper loop which will trigger the alarm if the switch is removed from the door. There are five color coded wires. The MSS2707A is a low cost alternative to other high security contacts on the market and is used in government and high security commercial facilities around the world.

PDF ATTACHMENTS: SALES-SHEET PDF, INSTRUCTIONS PDF

Specifications: Part Number: MSS2707A Configuration: High Security Triple Bias  Color: Brushed Aluminum Custom Options: Call for length of armored cable, wire, and resitors. Urathane potted for maximum protection of electrical components and resistance from harsh environment. Electrical Rating: Maximum 30 VDC, 20 ma, 3 W Gap: 0.3" to 0.6″ Lead Length: 48" #22 AWG Wire Leads, 18" Armored Cable Loop Type (with magnet present): SPDT Door Position Switch, Normally Closed Pry Tamper Mounting: Surface Mount, Four Screws each Switch and Magnet Size: 4.25" Length x 1.50" Width x 0.75" Depth Termination: SPDT Wires; Common - Green, Closed - Red, Open - White Pry Tamper; Violet - Violet Lifetime Warranty Weight: 1/4 lb NOTE: End-of-line resistors may be used to allow a predetermined trickle of current to flow and permit operation from a supervised line at all times. See Installation Instructions for more information.

CONTACT - HIGH SECURITY 4-1/4L x 1-1/2W x3/4D Triple Bias, Alum w/18" Armor Cabl
	Quantity in Basket: None Code: FMSS2707A Price: $107.14
	Quantity:
High Security Triple Bias (SPDT) with 18" Amored Cable Ref# 2707A
