8" SUSPENDO SADDLES (2-1/2" Diam)

The ONLY communication cable support made specifically for ceiling wire applications. Suspendo Saddles are an extremely cost effective alternative to cable trays and J-Hooks. Typically 1/2 to 1/3 the cost of a traditional J-Hook Installation. In addition, Suspendo Saddles are made from an advanced polymer and are UL Listed, Plenum rated, and RoHS compliant.

PDF ATTACHMENTS DATA SHEET (1) , DATA SHEET (2), INSTALLATION INFO

Properties:

• Excellent corrosion and chemical resistance.
• Exceptionally high strength-to-weight ratio.
• Very good abrasion and impact resistance over a wide range of temperature.
• Excellent heat resistance and electrical properties, with a very high dielectric strenngth.
• Cable support can be easily integrated to ceiling grid with only tie-off wire where jurisdiction requires.
• The new Snap Button is versitile, easy to use, and compatible with any type of clip with a 1/4" hole.
• Works with these clips: APS, 4Z34, SFC-18, SFC-58, 4H912, 4H24, BC-18, 4H58, M24...etc.
• Patent Pending.

Capacity Reference:

8" Strap holds up to (50) CAT-5e cables when used with batwing, up to (110) when used as tie-wire loop.

RINGS & HANGERS - LOOP SADDLES 8" Suspendo Saddles (100)
	Quantity in Basket: None Code: SSCD-8 Price: $0.00
	Quantity Pricing Breakdown 1-5 $125.85 6+ $117.32 Quantity:

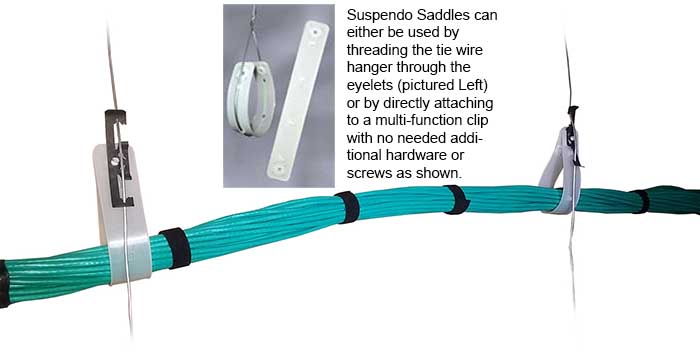

OPTION 1 - Attach directly to a multi-function clip (Batwing) in seconds with no screws or additional hardware. OPTION 2 - Loop the tie wire hanger directly through the eyelets for larger bundling capacity.
